WaveShare E-Ink Display

Comments

E-Paper

I really like e-paper as a concept. Gentle on the eyes, holds an image with no power. So a long time ago I purchased a 4.3" WaveShare e-paper display and did nothing with it. It is quite a large display, 800x600 pixels and, despite the passage of many years since I bought it, still quite expensive at $121 from core-electronics.

/images/arduino/epaper-hello.jpg

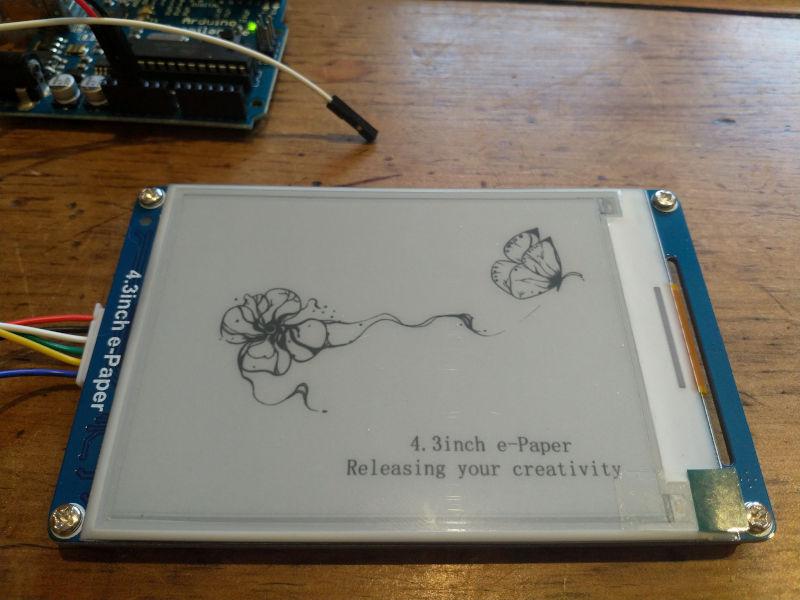

Shown here with the pretty picture of a butterfly and a flower as it comes out of the box. Note also that I have it oriented in landscape with the wires on the left, more on this later.

I thought I'd try to put together a word-a-day e-paper calendar for the kitchen table, as I also like words.

First thing to do is to find some a sample word for which end I found Websters Unabridged Dictionary on Gutenberg.

Abhor

To shrink back with shuddering from; to regard with horror; to feel excessive repugnance toward; to detest; to loathe. Thou liest, abhorred tyrant; with my sword I'll prove the lie.

Connecting To The Arduino

The display has six wires. The documentation suggests that the blue (RST) wire does not need to be connected. In practice I found that it is better to not connect the white wire as well.

If the white wire is connected then it is not possible to upload a sketch as an error occurs:

avrdude: stk500_getsync() attempt 1 of 10: not in sync: resp=0xa5

The documentation suggests that you disconnect the green and white wires (RX and TX) while uploading a sketch. The you have to press the reset button to start the sketch again. If instead you just don't connect the white (RX) wire at all, everything works fine.

Wiring

Arduino

4.3" e-Paper

5v

Red

GND

Black

RX/D0

White*

TX/D1

Green

D2

Yellow

RST

Blue*

  • Don't connect the blue or white wires

E-Paper Hello World

Following is a basic hello world program that displays the butterfly and flower image that is in the internal memory.

epaper_hello.ino (Source)

#include <epd.h>
const int led = 13;
void setup() {
  /*
  user led init
  */
  pinMode(led, OUTPUT);
  digitalWrite(led, LOW);
  epd_init();
  epd_wakeup();
  epd_set_memory(MEM_NAND);
  epd_screen_rotation(EPD_INVERSION);
}
void loop() {
  // put your main code here, to run repeatedly:
  epd_clear();
  epd_disp_bitmap("PIC7.BMP", 0, 0);
  epd_udpate();
  epd_enter_stopmode();
  char flag = 0;
  while (1)
  {
    if(flag)
    {
      flag = 0;
      digitalWrite(led, LOW);
      delay(1000);
    }
    else
    {
      flag = 1;
      digitalWrite(led, HIGH);
      delay(3000);
    }
  }
}

Things to note:

  • line 13: epd_wakeup because we put it to sleep earlier. While it is awake it draws a fair amount of power.

  • line 15: set the screen orientation to landscape, with wires on the left

  • lines 21-23: clear the display, load a picture from the internal flash memory and update the display

  • line 25: epd_enter_stopmode so it stops drawing power. Note the red light at the top left turns off.

Then the on-board LED starts flashing again. Just so it is clear that there is something happening.

E-Paper Calendar

My vision of an epaper word-a-day calendar is a little more challenging than I had at first anticipated. The software for drawing to the display is extremely rudimentary, with commands to display text, an image from the SD card or internal NAND flash and basic vector drawing commands.

void epd_draw_pixel(int x0, int y0);
void epd_draw_line(int x0, int y0, int x1, int y1);
void epd_fill_rect(int x0, int y0, int x1, int y1);
void epd_draw_circle(int x0, int y0, int r);
void epd_fill_circle(int x0, int y0, int r);
void epd_draw_triangle(int x0, int y0, int x1, int y1, int x2, int y2);
void epd_fill_triangle(int x0, int y0, int x1, int y1, int x2, int y2);
void epd_clear(void);

void epd_disp_char(unsigned char ch, int x0, int y0);
void epd_disp_string(const void * p, int x0, int y0);

void epd_disp_bitmap(const void * p, int x0, int y0);

There is also an exciting looking function for writing images to the SD card documented in the manual, but there are no library functions to use this functionality.

Send a file to the SD card using UART (0x40) After this command executed, any data from UART will be saved into the SD card and saved with the given filename. If the transmission stops more than 1s, this function will stop too. After the file sent, file size and Xor check will be returned and you should compare them to check if the file was sent properly. Last, if the file was sent properly, you should send the character ‘y’ to confirm. If the file is an image (.JPG or .BMP), you should set the storage area to SD card (A5 00 0A 07 01 CC 33 C3 3C A9), and then use the display image command to display it. UART input stream command is not affected by the storage area settings.Files are only going to be saved into the Micro SD card.

Nevertheless I laboriously laid out a basic mockup of a calendar page. While laying this out I used a grid of points to help align the text.

/**
* Draw a grid from (t,l) with points spaced `w` pixels apart and with
* major `tick` marks as specified.
*/
void draw_grid(int t, int l, int w, int tick) {
  int i = 0;
  int j = 0;
  for (int x = l; x <= 800; x += w) {
    i++;
    for (int y = t; y <= 600; y += w) {
      j++;
      epd_draw_pixel(x, y);
      if ((i % tick == 0) && (j % tick == 0)) {
        draw_tick(x, y);
      }
    }
  }
}

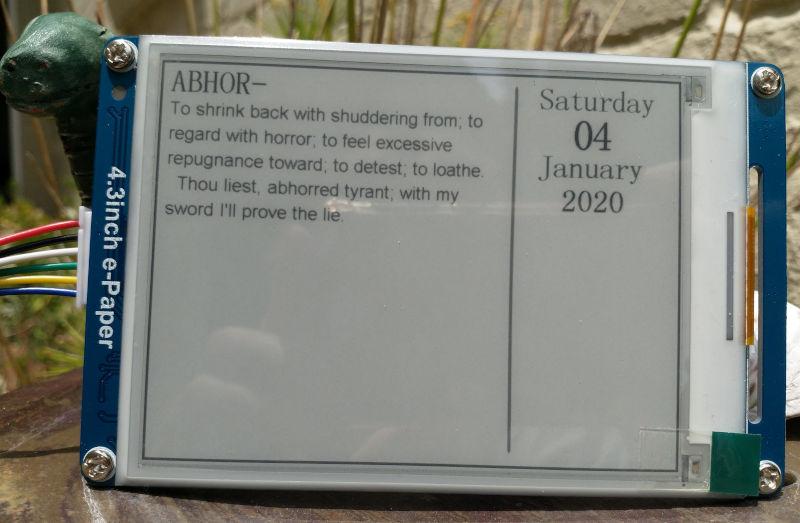

The finished sample:

/images/arduino/epaper-calendar.jpg

The code:

epaper_calendar.ino (Source)

#include <epd.h>
const int led = 13;
void setup() {
  /*
  user led init
  */
  pinMode(led, OUTPUT);
  digitalWrite(led, LOW);
  // random number seeding
  Serial.begin(9600);
  // if analog input pin 0 is unconnected, random analog
  // noise will cause the call to randomSeed() to generate
  // different seed numbers each time the sketch runs.
  randomSeed(analogRead(0));
  epd_init();
  epd_wakeup();
  epd_set_memory(MEM_NAND);
  epd_screen_rotation(EPD_INVERSION);
}
void loop() {
  char flag = 0;
  draw_calendar();
  epd_enter_stopmode();
  while (1)
  {
    if(flag)
    {
      flag = 0;
      digitalWrite(led, LOW);
      delay(1000);
    }
    else
    {
      flag = 1;
      digitalWrite(led, HIGH);
      delay(3000);
    }
  }
}
void draw_calendar(void) {
  char const *date[] = {"Saturday", "04", "January", "2020"};
  char const *title = " ABHOR-";
  char const *words[] = {
    "To shrink back with shuddering from; to",
    "regard with horror; to feel excessive",
    "repugnance toward; to detest; to loathe.",
    "  Thou liest, abhorred tyrant; with my ",
    "sword I'll prove the lie."
  };
  epd_clear();
  // draw the word of the day
  epd_set_color(BLACK, WHITE);
  epd_set_en_font(ASCII48);
  epd_disp_string(title, 8, 8);
  // draw the definition
  epd_set_en_font(ASCII32);
  epd_set_color(DARK_GRAY, WHITE);
  for (int i=0; i<5; i++) {
    epd_disp_string(words[i], 16, 58 + (38 * i));
  }
  // draw the date
  epd_set_color(DARK_GRAY, WHITE);
  epd_set_en_font(ASCII48);
  epd_disp_string(date[0], 578, 13);
  epd_set_color(BLACK, WHITE);
  epd_set_en_font(ASCII64);
  epd_disp_string(date[1], 633, 59);
  epd_set_color(DARK_GRAY, WHITE);
  epd_set_en_font(ASCII48);
  epd_disp_string(date[2], 578, 117);
  epd_set_color(BLACK, WHITE);
  epd_disp_string(date[3], 616, 169);
  // draw a decorative border around the screen
  for (int i=0; i < 4; i++) {
    epd_set_color(DARK_GRAY, WHITE);
    draw_rect(i, i, 799 - (2*i), 599 - (2*i));
  }
  // draw a light gray round ended line between the date and the word of the day
  for (int i=0; i < 5; i++) {
    int h = abs(i-2) * 2;
    epd_set_color(GRAY, WHITE);
    epd_draw_line(540 + i, 18 + h, 540 + i, 578 - h);
  }
  // draw_grid(8, 8, 10, 5);
  epd_udpate();
}
void draw_rect(int t, int l, int h, int w) {
  epd_draw_line(t, l, t, l + w);
  epd_draw_line(t, l, t + h, l);
  epd_draw_line(t + h, l, t + h, l + w);
  epd_draw_line(t, l + w, t + h, l + w);
}
/**
* Draw a grid from (t,l) with points spaced `w` pixels apart and with
* major `tick` marks as specified.
*/
void draw_grid(int t, int l, int w, int tick) {
  int i = 0;
  int j = 0;
  for (int x = l; x <= 800; x += w) {
    i++;
    for (int y = t; y <= 600; y += w) {
      j++;
      epd_draw_pixel(x, y);
      if ((i % tick == 0) && (j % tick == 0)) {
        draw_tick(x, y);
      }
    }
  }
}
/**
* Draw a major tick mark at the point specified.
*/
void draw_tick(int x, int y) {
  epd_draw_pixel(x - 1, y);
  epd_draw_pixel(x + 1, y);
  epd_draw_pixel(x, y - 1);
  epd_draw_pixel(x, y + 1);
}

Clearly this project needs a higher level text layout capability. An interesting solution to this problem is to build an image on a remote server and then chop it into scanlines which are then delivered piecemeal over wifi.
